Opel Insignia: Rear Suspension

Specifications

FASTENER SPECIFICATIONS

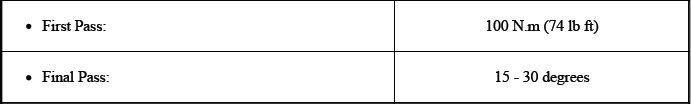

Single Use Threaded Fastener/Component Tightening Specifications

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Rear Suspension

Rear Suspension

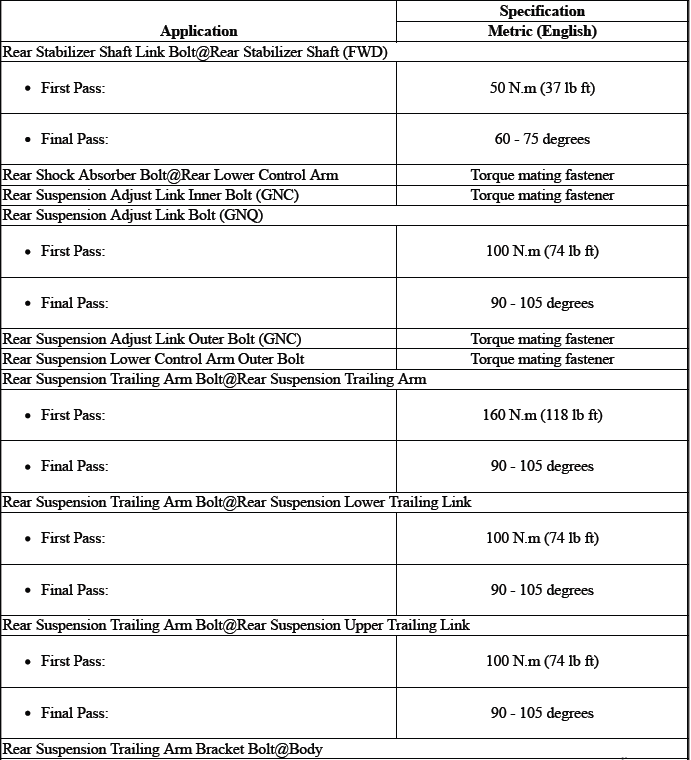

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

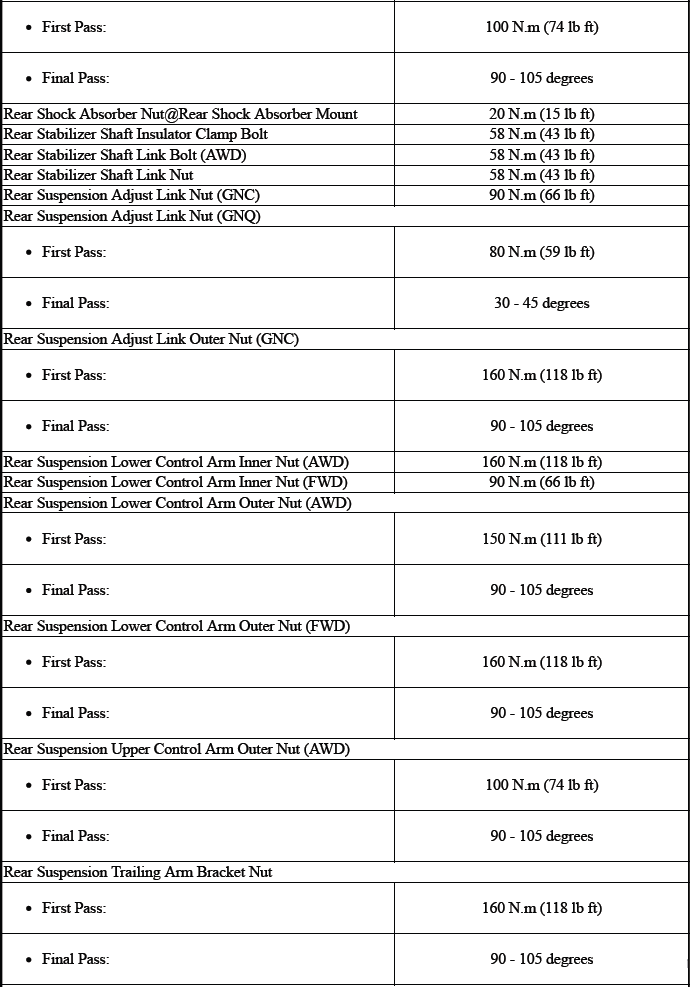

Rear Suspension

Rear Suspension

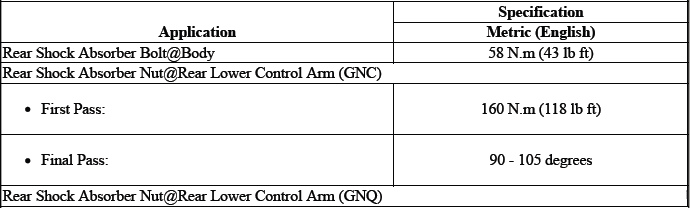

NOTE: All fasteners listed in this table can be reused after removal.

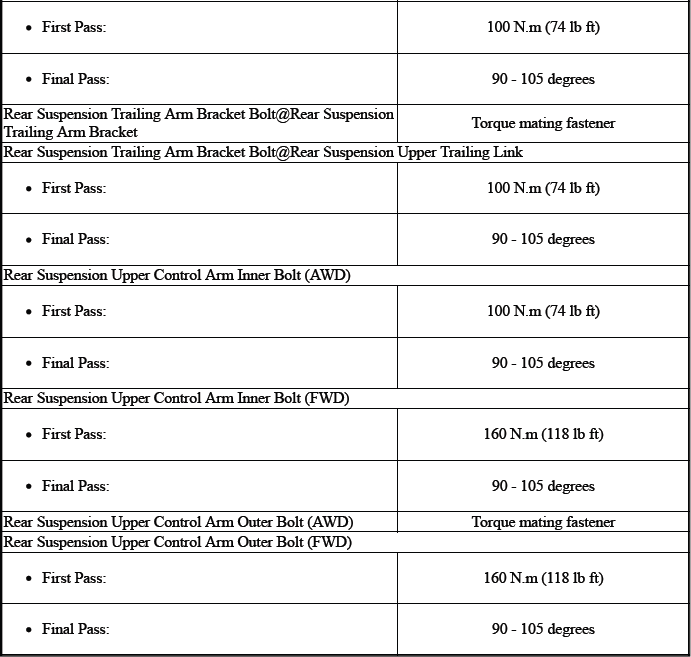

Rear Suspension

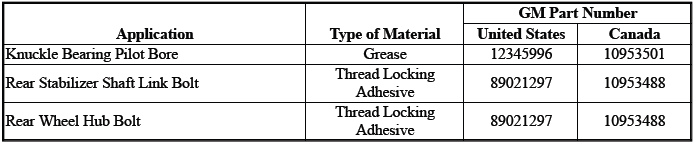

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Rear Suspension
