Opel Insignia: Special Tools and Equipment
SPECIAL TOOLS
DT-45866
J-45866
Input Shaft Seal Installer
.png)
EN-8062
J-8062
KM-348
Valve Spring Compressor - Head Off
.png)
EN-8087
J-8087
Cylinder Bore Gauge
.png)
EN-21867-850
J-21867-850
KM-498-B
KM-6106
83 93 852
Oil Pressure Gauge Adapter
.png)
EN-22738-B
GE-22738-B
J-22738-B
J-9666

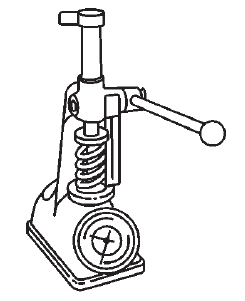

Valve Spring Tester
.png)
EN-23951
J-23951

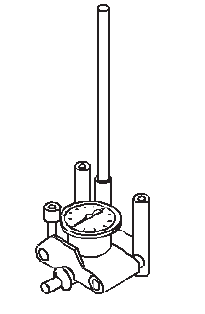

Valve Manometer
.png)
EN-28410
J-28410

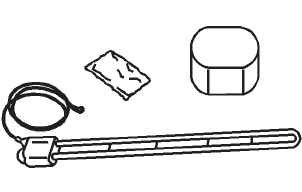

Gasket Remover
.png)
EN-28467-34
J-28467-34
Lift Hook Wing Nut and Washer
.png)
EN-28467-518
J-28467-518

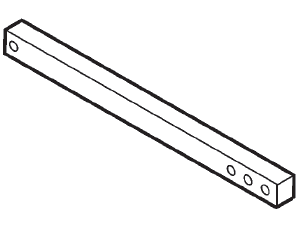

Engine Support Adapter - Main Support Beam
.png)
EN-34115
J-34115
Sprocket Bearing Installer
.png)
EN-35667-A
J-35667-A
Cylinder Head Leakdown Tester
.png)
EN-36017
J-36017
KM-840 - Removal
KM-6152 - Installation
Valve Seal Remover
.png)
EN-36462-A
J-36462-A
Engine Support Adapter Leg Set
.png)
EN-36857
J-36857

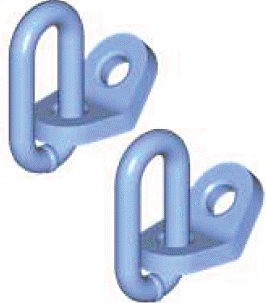

Engine Lift Bracket
.png)
EN-38188
J-38188
Cylinder Head Broken Bolt Extractor Kit
.png)
EN-39358
J-39358
83 94 785
Spark Plug Socket
.png)
EN-41816
EN-51577
J-41816
Crankshaft Balancer Remover
.png)
EN-41816-2
J-41816-2
Crankshaft End Protector
.png)
EN-42385-700
J-42385-700
High Feature Thread Repair Kit
.png)
EN-42385-850
J-42385-850
Thread Repair Kit
.png)
EN-42385-880
Head Bolt Thread Repair Adapter Kit
.png)
EN-43405-1
J-43405-1
Engine Support Fixture Adapter - Passenger Side
.png)
EN-43405-2
J-43405-2
Engine Support Fixture Adapter - Driver Side
.png)
EN-43953
J-43953
Piston Ring Compressor - 86 mm
.png)
EN-43963
J-43963
KM-6149
Valve Spring Compressor (off car)
.png)
EN-43966-1
J-43966-1
Connecting Rod Guides
.png)
EN-45025
J-45025
Belt Tensioner Wrench
.png)
EN-45059
J-45059
Angle Meter
.png)
EN-45299
J-45299
Engine Pre-Luber
.png)
EN-46116
Valve Stem Seal Remover
.png)
EN-46745
J-43654
Piston Pin Clip Remover/Installer
.png)
EN-46745-4
Piston Pin Clip Remover/Installer Adapter
.png)
EN-47836
J-47836
Ring Compressor - 88 mm
.png)
EN-47909
Injector Bore and Sleeve Cleaning Kit
.png)
EN-48034
Crankshaft Balancer Installer
.png)
EN-49245
Injector Seal Installer and Sizer
.png)
EN-49248
Fuel Rail Assembly Remover
.png)
EN-50656
Timing Chain Retention Tool Kit
.png)
EN-50717

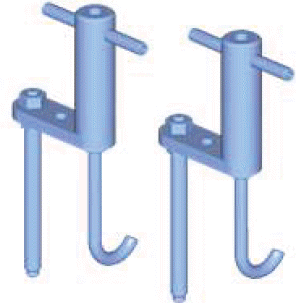

Valve Spring Compressor
.png)
EN-50717-10
Valve Spring Compressor Adapter
.png)
EN-50790
High Pressure Fuel Pump Installation Alignment Gauge
.png)
EN-50791
Fuel Injector Nozzle Installer - to Rail
.png)
EN-50793
Camshaft Actuator Locking Tool
.png)
EN-50820

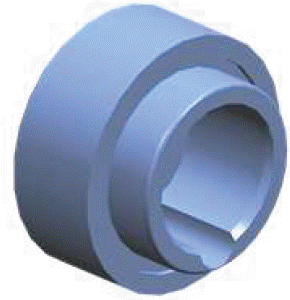

Front Crankshaft Seal Installer
.png)
EN-50837
Timing Chain Tensioner Retraction Tool
.png)
EN-50956

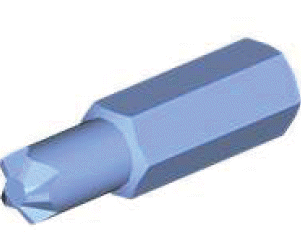

Tamper Proof Drive Bit
.png)
EN-51105
Injector Seal Installer
.png)
EN-51380
Seal Installer
.png)
EN-51577
Balancer Holder and Remover
.png)
EN-51749
Compression Gauge Tester Kit
EN-51760
EN-50792
Flywheel Holder
EN-51768
Engine Support Fixture Adapter Bolts M8
EN-52059
Engine Support Fixture Adapter Bolts M10
GE-7872
J-7872
Magnetic Base Dial Indicator Set
GE-21867-A
J-21867-A
Oil Pressure Gauge Kit
GE-42220
J-28428-E
J-42220
Universal 12V Leak Detection Lamp
