Opel Insignia: Specifications

FASTENER SPECIFICATIONS

Single Use Non-Threaded Fasteners/Components

Application

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Camshaft Cover Gasket
Combustion Fuel Injector Seal
Connecting Rod Bearing
Crankshaft Front Oil Seal
Crankshaft Rear Oil Seal
Cylinder Head Core Hole Plug
Cylinder Head Gasket
Engine Coolant Thermostat Gasket
Engine Oil Cooler Gasket
Exhaust Manifold Gasket
Fuel Injector Seal Ring
Fuel Injector Spacer
Fuel Pump Gasket
Fuel Pump Housing Seal
Intake Manifold Gasket
Oil Pump Screen Gasket
Oil Pump Seal
Piston Pin Retainer
Positive Crankcase Ventilation Hose Fitting
Positive Crankcase Ventilation Tube
Positive Crankcase Ventilation Valve
Thermostat Bypass Pipe Gasket
Throttle Body Gasket
Timing Chain Tensioner Gasket
Turbocharger Coolant Feed and Return Pipe Gasket
Turbocharger Coolant Feed and Return Pipe Washer
Turbocharger Gasket
Turbocharger Oil Feed Pipe Gasket
Turbocharger Oil Feed Pipe Washer
Turbocharger Oil Return Pipe Gasket
Vacuum Pump Gasket
Vacuum Pump Seal
Valve Stem Oil Seal
Water Outlet Gasket
Water Pump Gasket

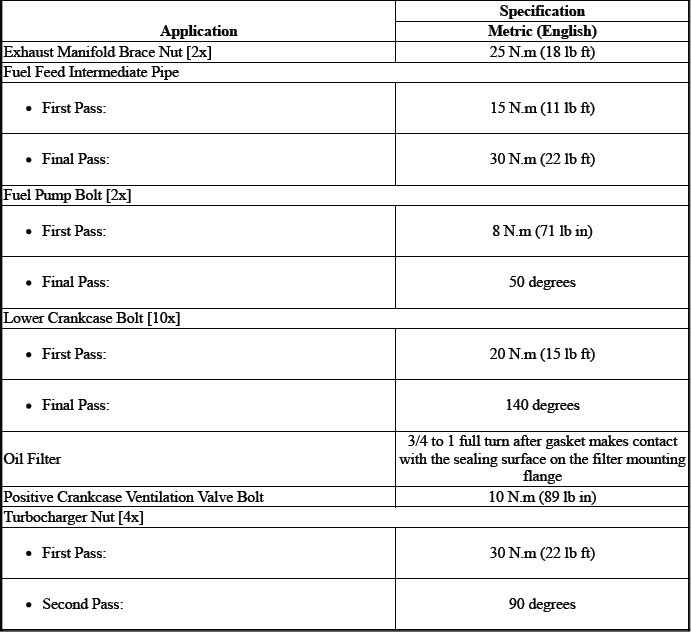

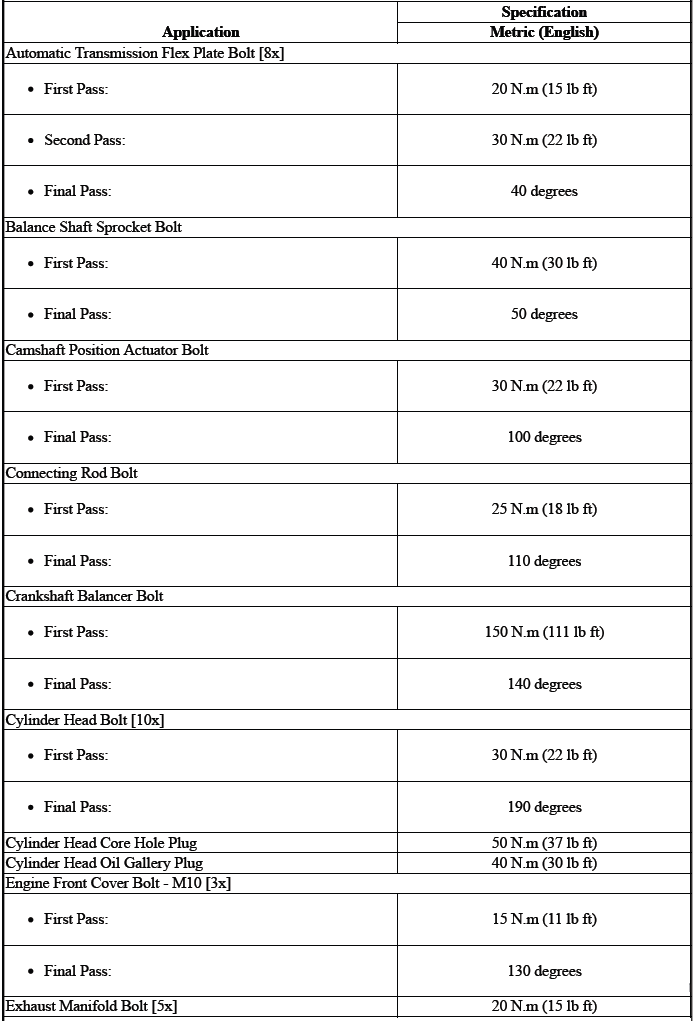

Single Use Threaded Fastener/Component Tightening Specifications

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Specifications

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Specifications

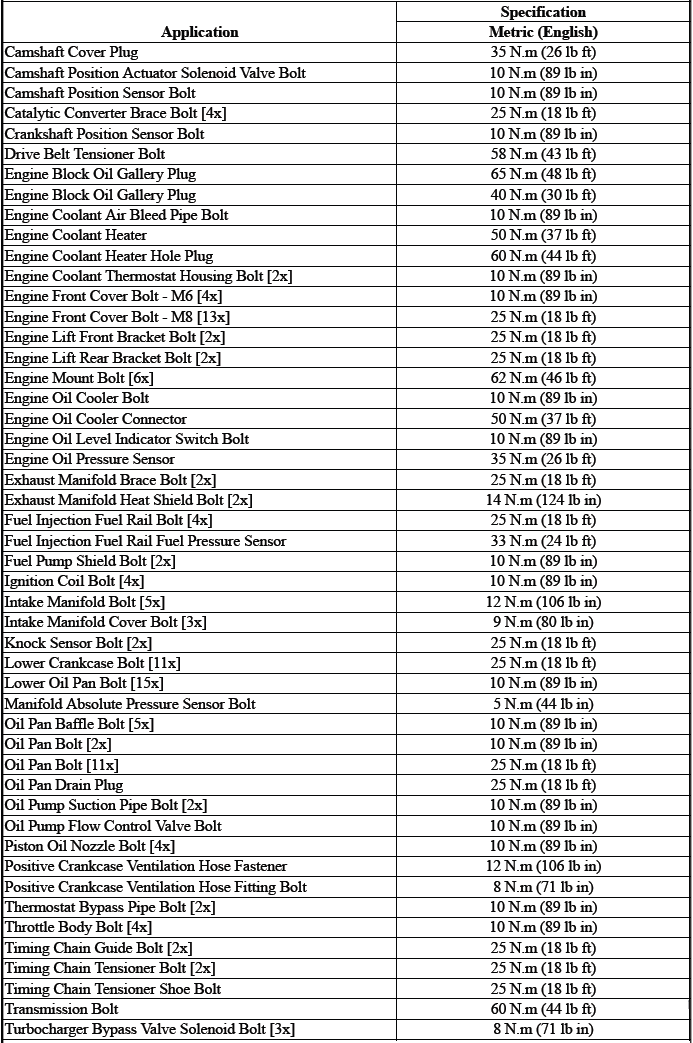

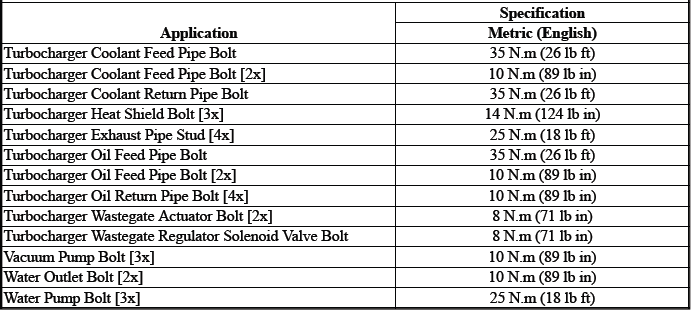

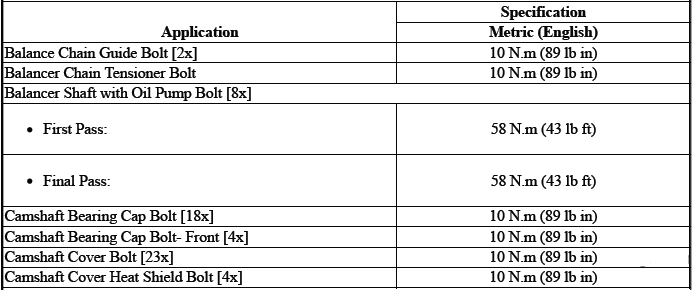

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Specifications

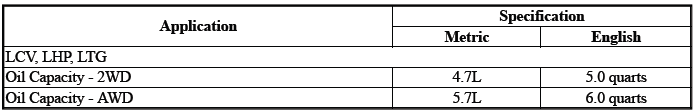

APPROXIMATE FLUID CAPACITIES

Specifications

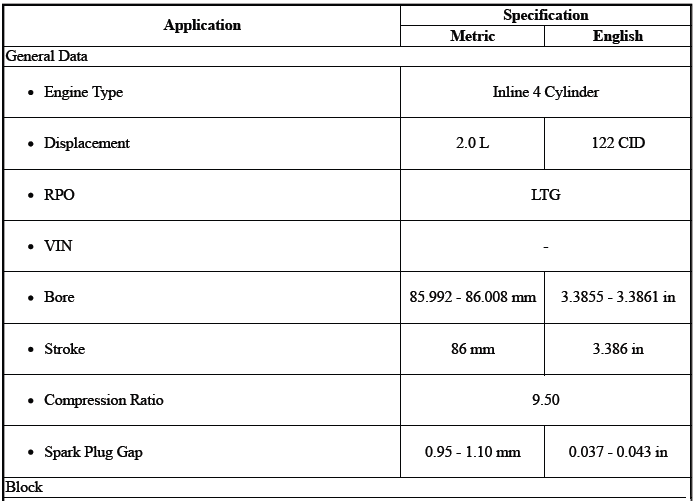

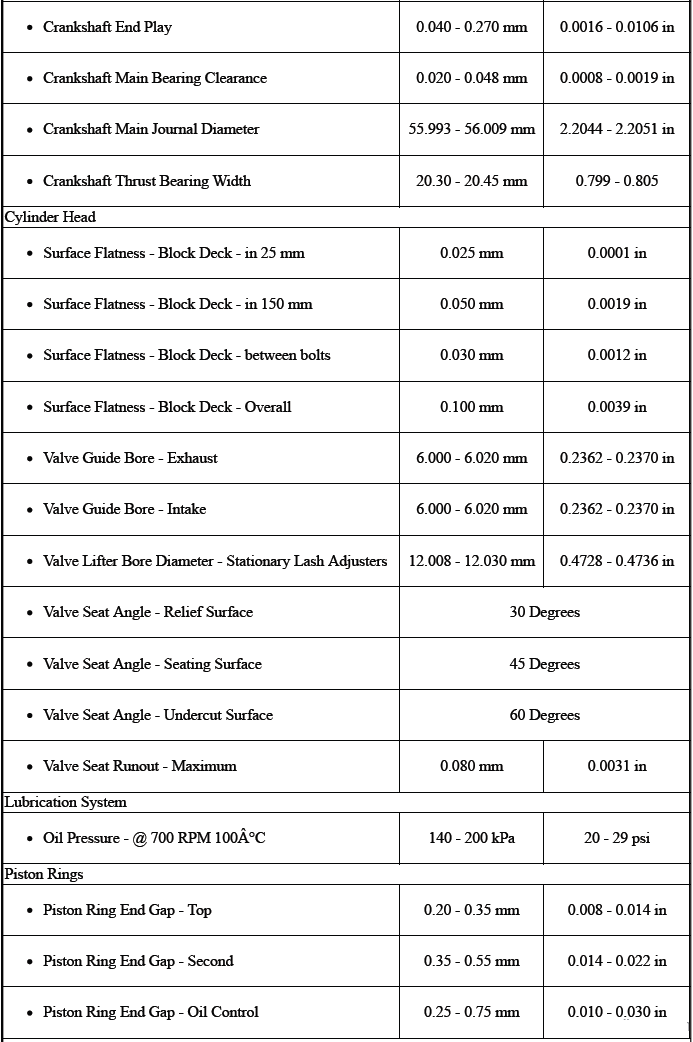

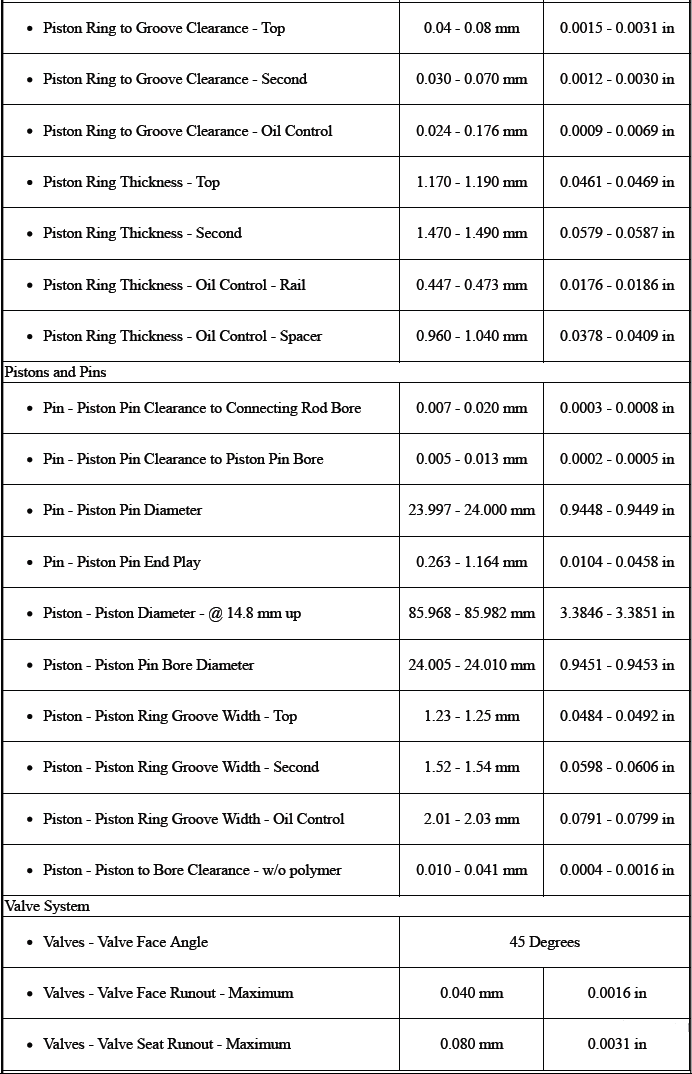

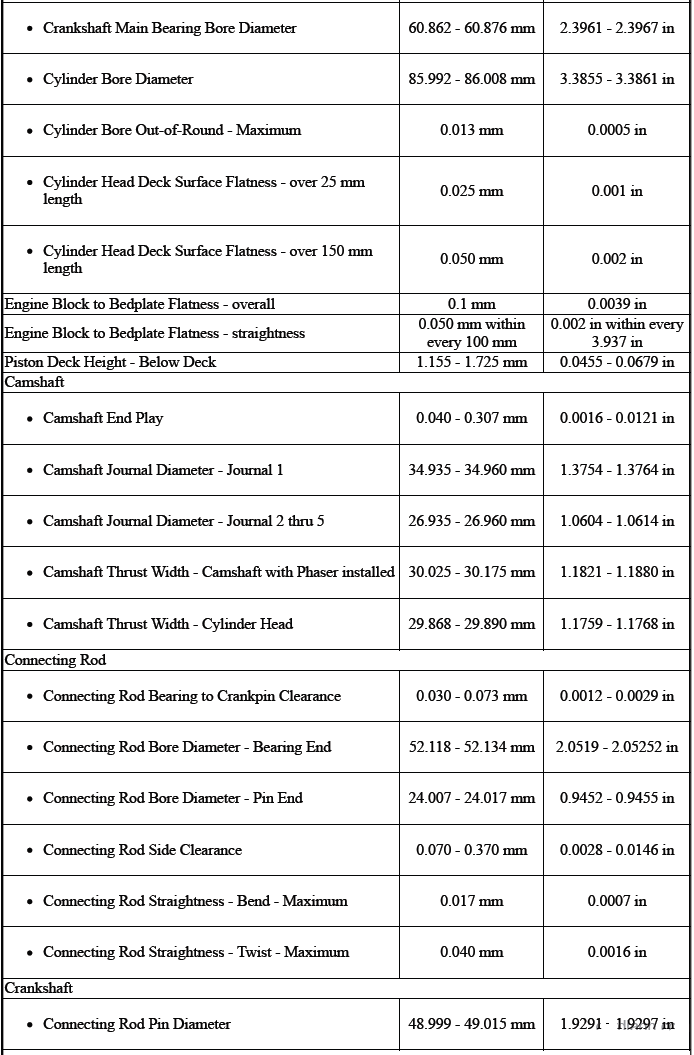

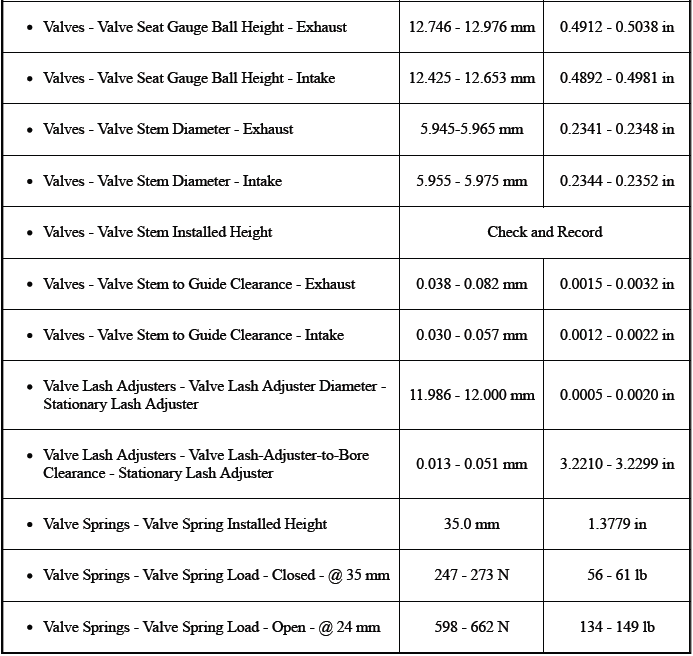

ENGINE MECHANICAL SPECIFICATIONS

Specifications

Specifications

Specifications

Specifications

Specifications

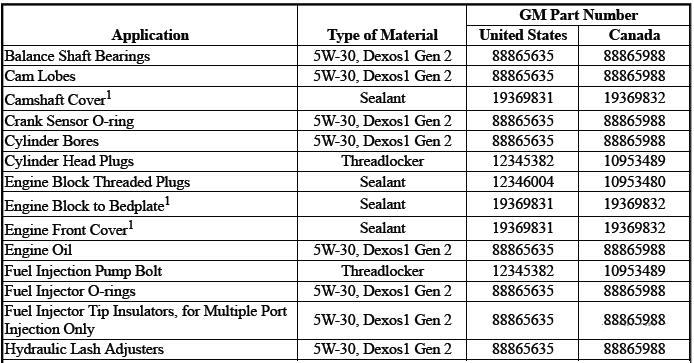

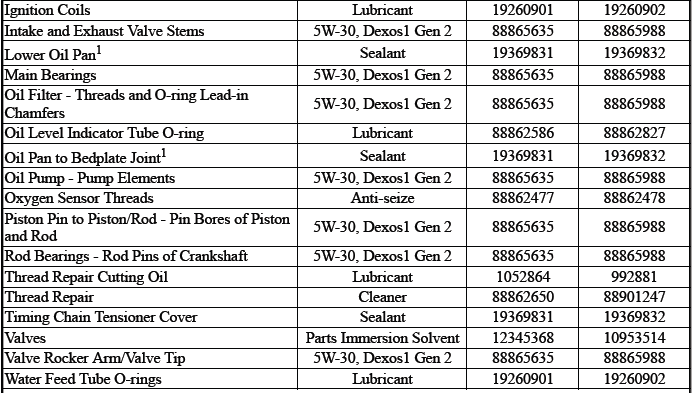

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Specifications

Specifications

1 Ensure proper use of room temperature vulcanizing (RTV) sealant.

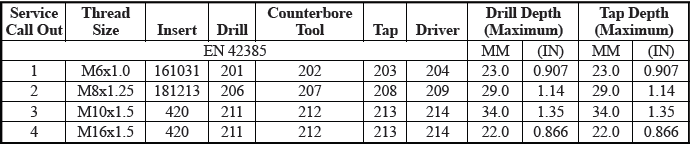

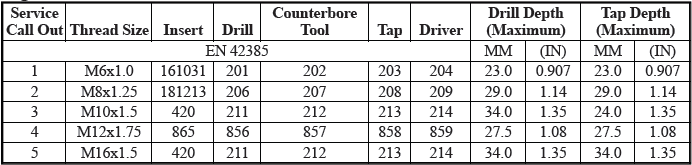

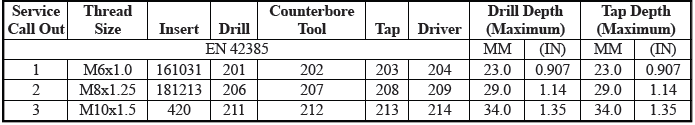

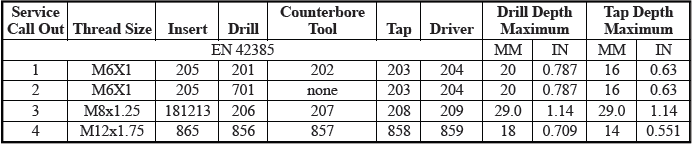

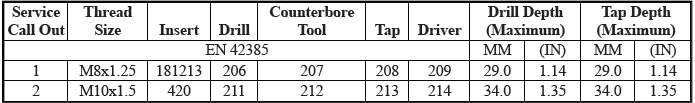

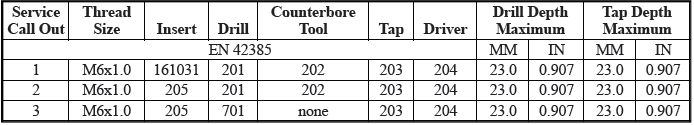

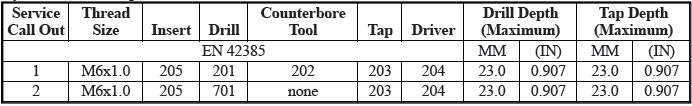

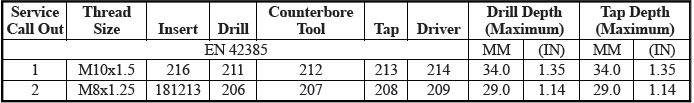

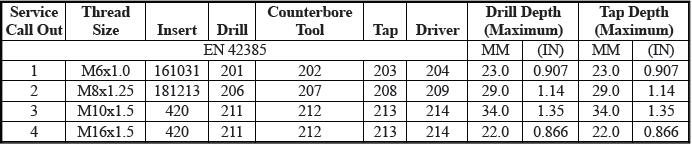

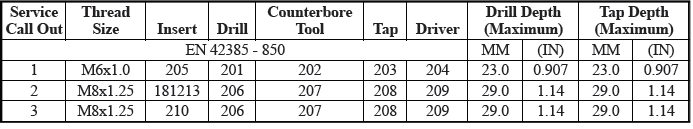

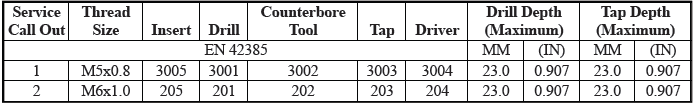

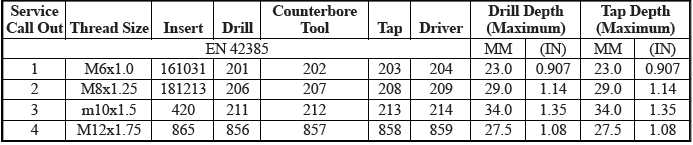

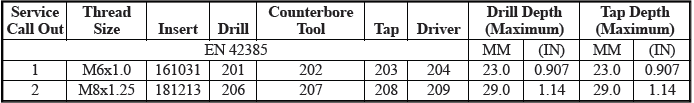

THREAD REPAIR SPECIFICATIONS

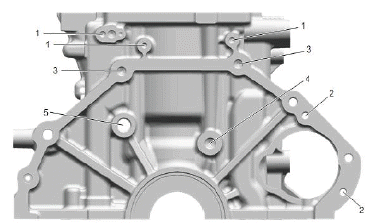

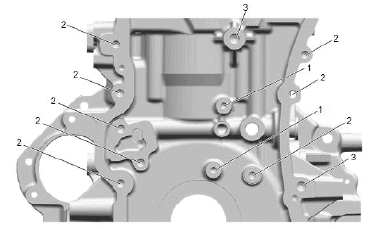

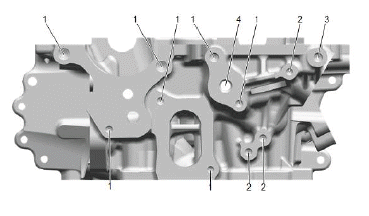

Engine Block - Front View

Engine Block - Front View

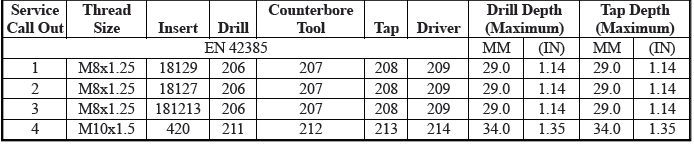

Specifications

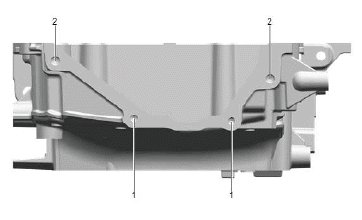

Engine Block - Back View

Specifications

Engine Block - Back View

Specifications

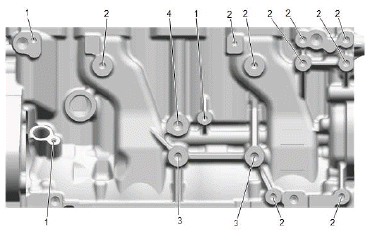

Engine Block - Right Side View

Specifications

Engine Block - Right Side View

Specifications

Engine Block - Bottom View

Specifications

Engine Block - Bottom View

Specifications

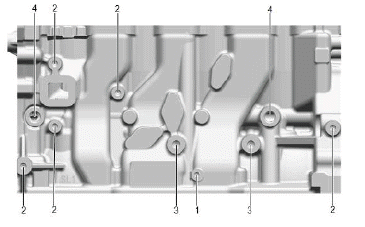

Engine Block - Left Side View

Specifications

Engine Block - Left Side View

Specifications

Engine Block - Top View

Specifications

Engine Block - Top View

Specifications

Lower Crankcase - Bottom View

Specifications

Lower Crankcase - Bottom View

Specifications

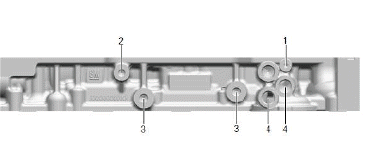

Lower Crankcase - Right Side View

Specifications

Lower Crankcase - Right Side View

Specifications

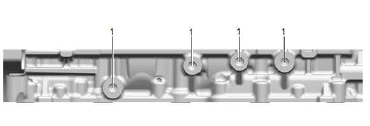

Lower Crankcase - Left Side View

Specifications

Lower Crankcase - Left Side View

Specifications

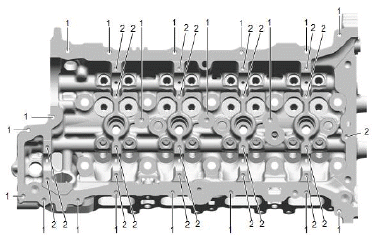

Cylinder Head - Top View

Specifications

Cylinder Head - Top View

Specifications

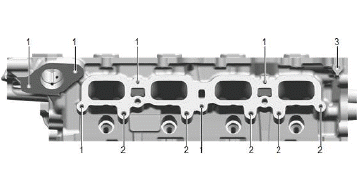

Cylinder Head Right Side View - Intake Manifold Deck Face

Specifications

Cylinder Head Right Side View - Intake Manifold Deck Face

Specifications

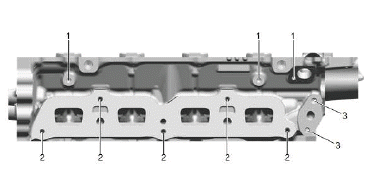

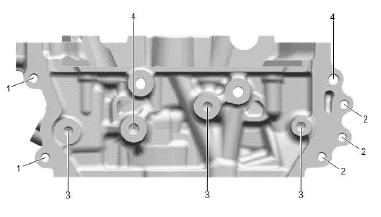

Cylinder Head Left Side View - Exhaust Manifold Deck Face

Specifications

Cylinder Head Left Side View - Exhaust Manifold Deck Face

Specifications

Cylinder Head - Front View

Specifications

Cylinder Head - Front View

Specifications

Cylinder Head - Back View

Specifications

Cylinder Head - Back View

Specifications

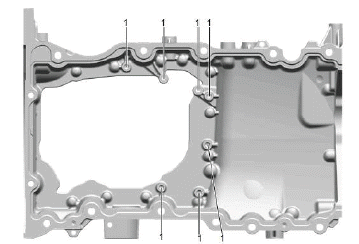

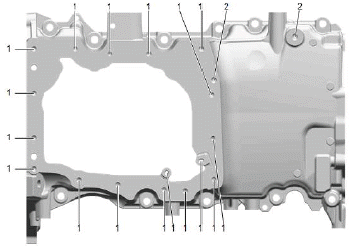

Upper Oil Pan - Top View

Specifications

Upper Oil Pan - Top View

Specifications

Upper Oil Pan - Bottom View

Specifications

Upper Oil Pan - Bottom View

Specifications

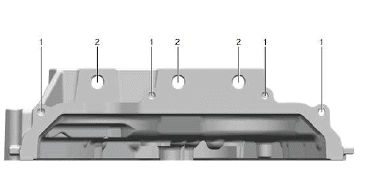

Upper Oil Pan - Front View

Specifications

Upper Oil Pan - Front View

Specifications

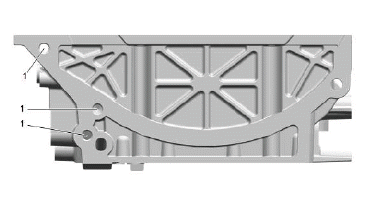

Upper Oil Pan - Back View

Specifications

Upper Oil Pan - Back View

Specifications

Engine Front Cover - Top View

Specifications

Engine Front Cover - Top View

Specifications

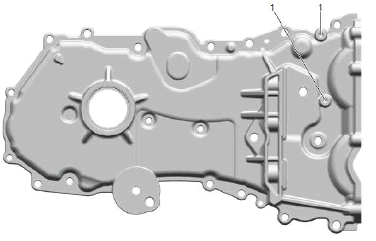

Engine Front Cover - Front View

Specifications

Engine Front Cover - Front View

Specifications
