Opel Insignia: Specifications

FASTENER SPECIFICATIONS

Single Use Non-Threaded Fasteners/Components

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Application

Power Transfer Unit Alignment Sleeve
Power Transfer Unit Cover Housing Seal
Power Transfer Unit Face Seal
Power Transfer Unit Half Shaft SealO-Ring
Power Transfer Unit Cover to Intermediate Drive Shaft Seal
Power Transfer Unit Gear Shaft Rear Seal - Case
Power Transfer Unit Gear Shaft Rear Seal - Cover
Power Transfer Unit Input Shaft Seal- Front
Power Transfer Unit Half Shaft Retainer Clip
Power Transfer Unit Propeller Shaft Retainer
Power Transfer Unit Propeller Shaft Seal - O-Ring

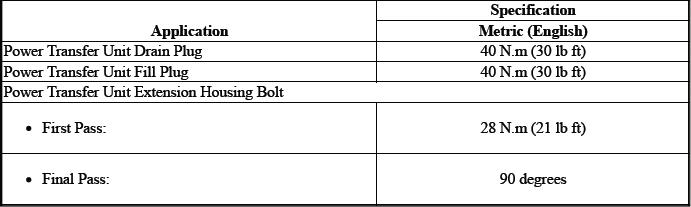

Single Use Threaded Fastener/Component Tightening Specifications

NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.

Power Transfer Unit/Transfer Case

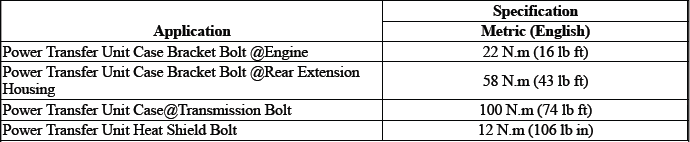

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Power Transfer Unit/Transfer Case

Power Transfer Unit/Transfer Case

APPROXIMATE FLUID CAPACITIES

Power Transfer Unit/Transfer Case

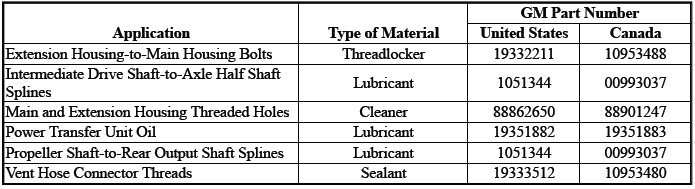

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Power Transfer Unit/Transfer Case
