Opel Insignia: Specifications, Schematic and Wiring Diagrams
Specifications

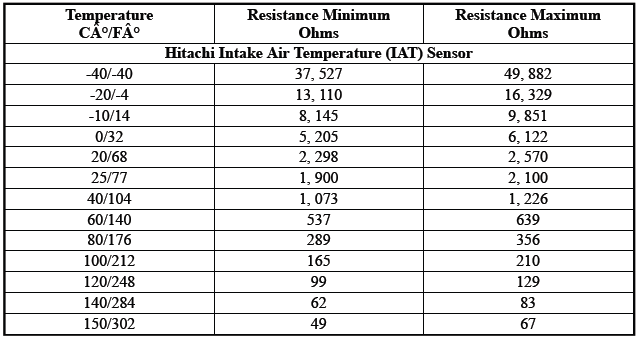

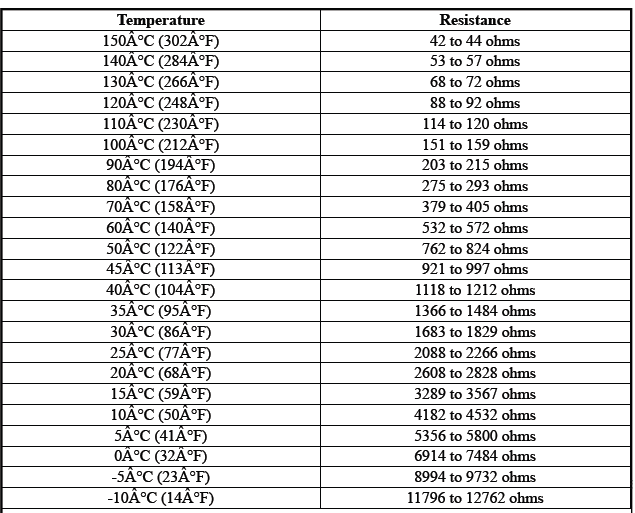

TEMPERATURE VERSUS RESISTANCE - INTAKE AIR TEMPERATURE S
.png)
TEMPERATURE VERSUS RESISTANCE - ENGINE COOLANT TEMPERATURE SENSOR
.png)
.png)

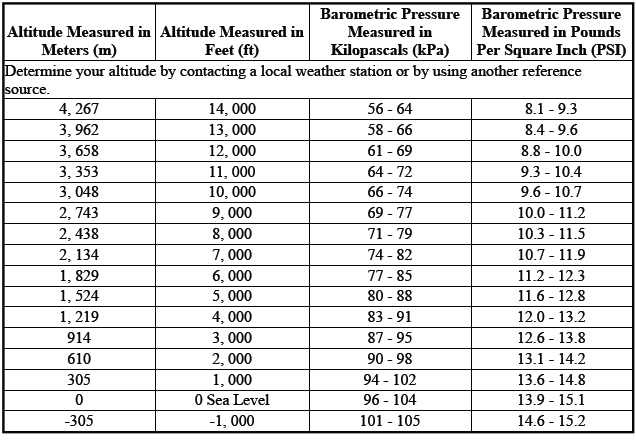

ALTITUDE VERSUS BAROMETRIC PRESSURE
.png)

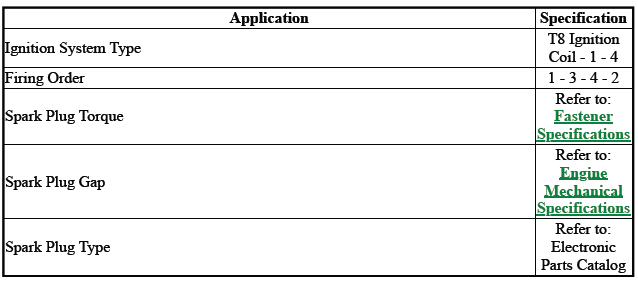

IGNITION SYSTEM SPECIFICATIONS
.png)
FASTENER SPECIFICATIONS

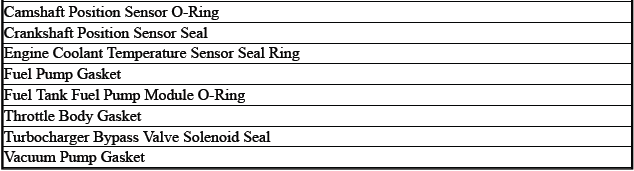

Single Use Non-Threaded Fasteners/Components
NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.
.png)
.png)

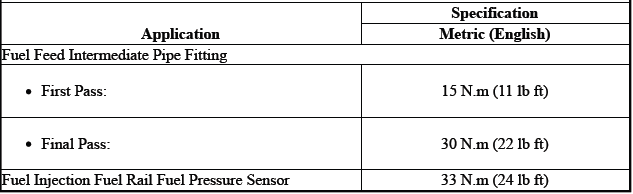

Single Use Threaded Fastener/Component Tightening Specifications
NOTE: All fasteners/components listed in this table MUST BE DISCARDED and replaced with NEW after removal.
.png)

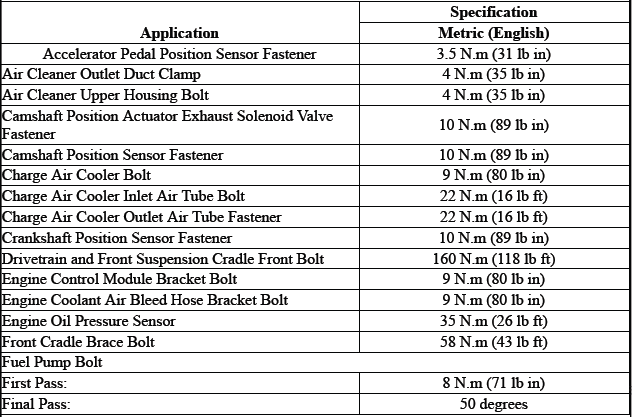

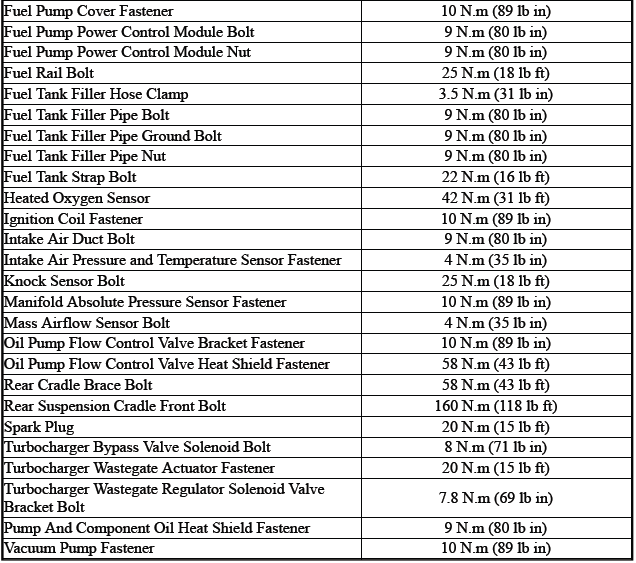

Reusable Threaded Fastener Tightening Specifications
NOTE: All fasteners listed in this table can be reused after removal.
.png)
.png)
APPROXIMATE FLUID CAPACITIES
.png)

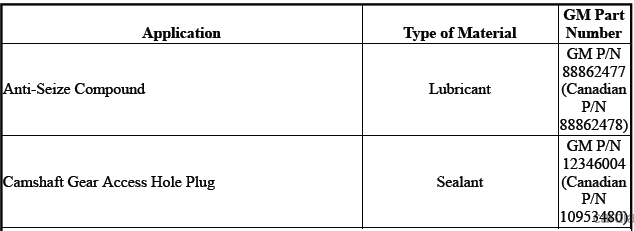

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS
.png)
.png)
Schematic and Wiring Diagrams
ENGINE CONTROLS WIRING SCHEMATICS (LTG)

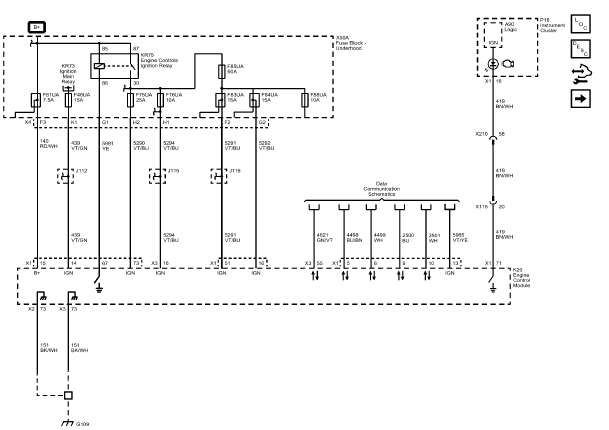

Power, Ground, Serial Data, and MIL
.png)
5V1, 5V2 and Low Reference Bus (1 of 3)
.png)

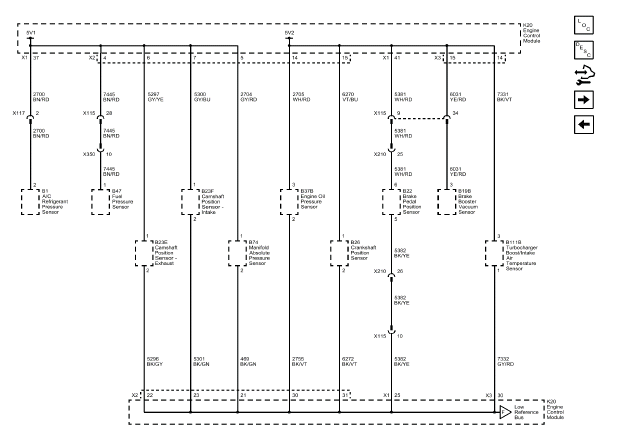

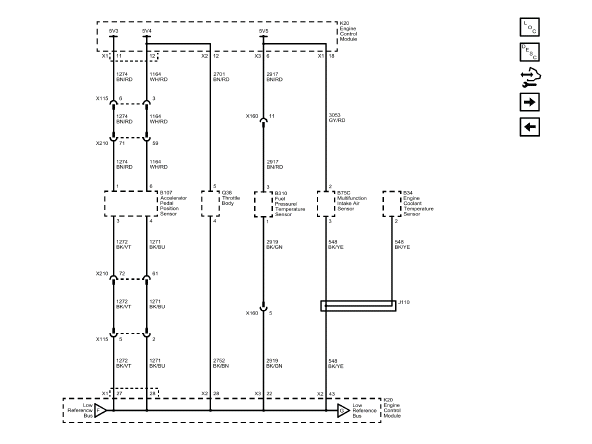

5V3, 5V4, 5V5 and Low Reference Bus (2 of 3)
.png)

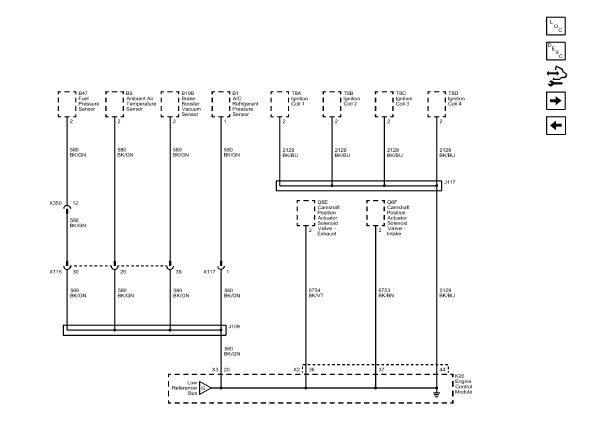

Low Reference Bus (3 of 3)
.png)

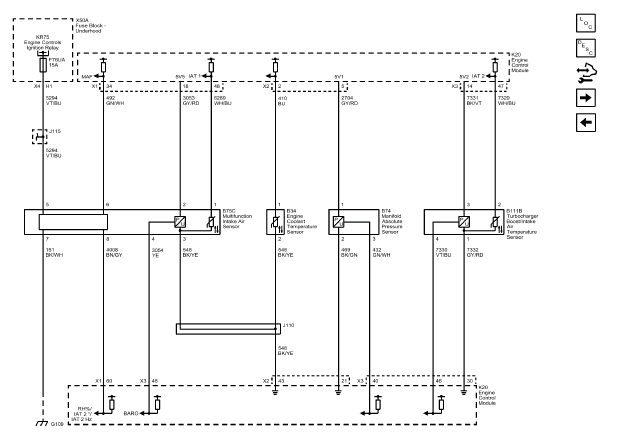

Engine Data Sensors - Pressure and Temperature
.png)

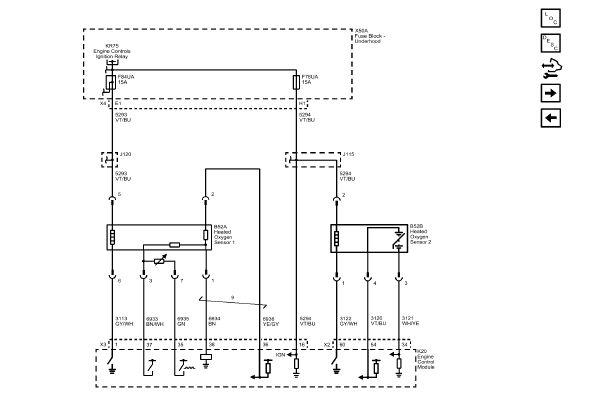

Engine Data Sensors - Oxygen Sensors
.png)

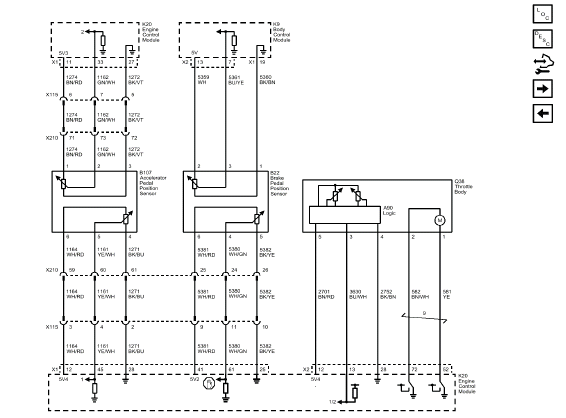

Engine Data Sensors - Throttle Controls and Override
.png)

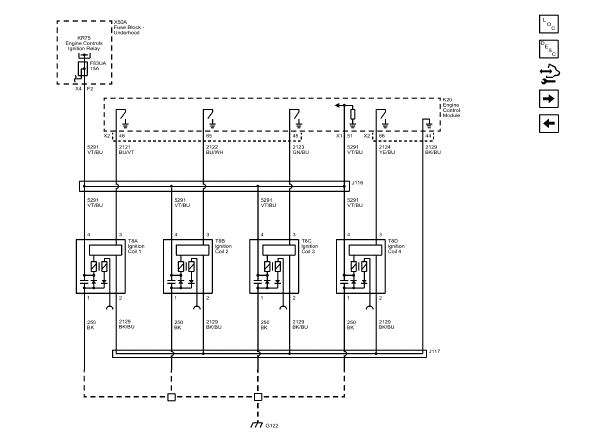

Ignition Controls - Ignition System
.png)

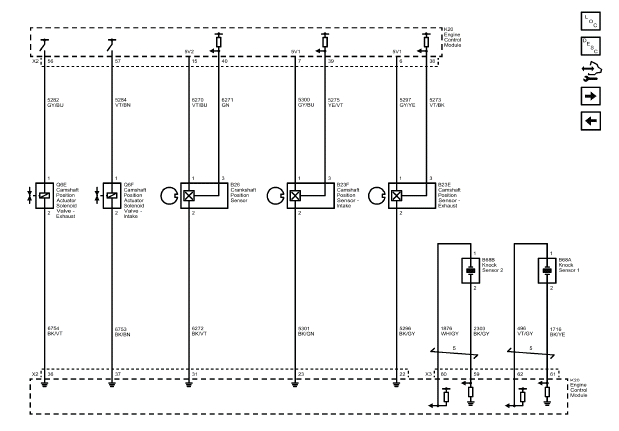

Ignition Controls - Camshaft Solenoids and Ignition Sensors
.png)

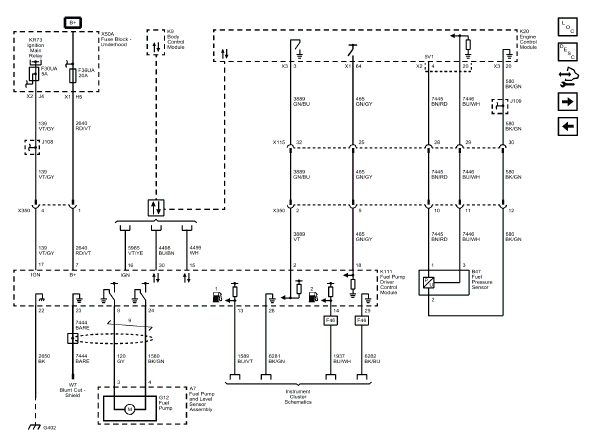

Fuel Controls - Fuel Pump Controls
.png)

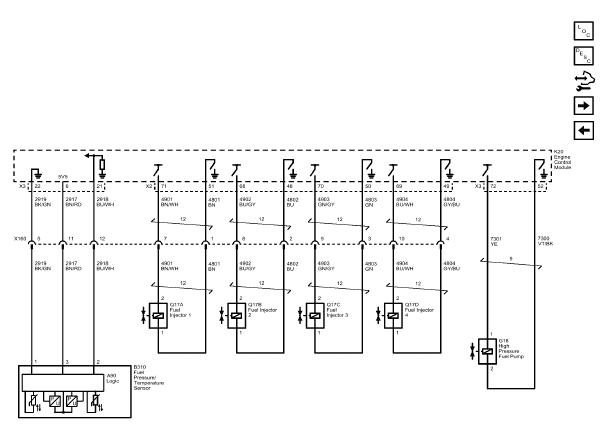

Fuel Controls - Fuel Injectors and High Pressure Control
.png)

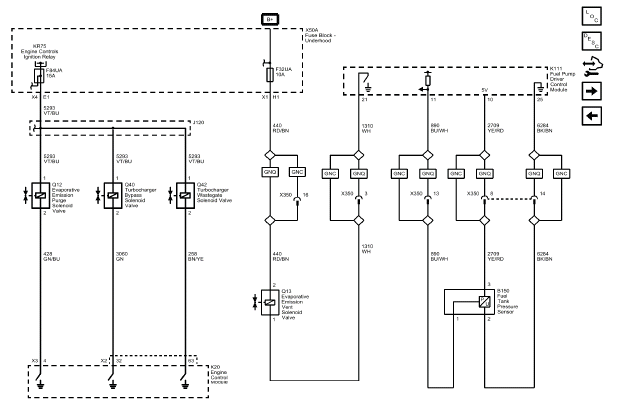

Fuel Controls - Evaporative Emission and Turbocharger Controls
.png)

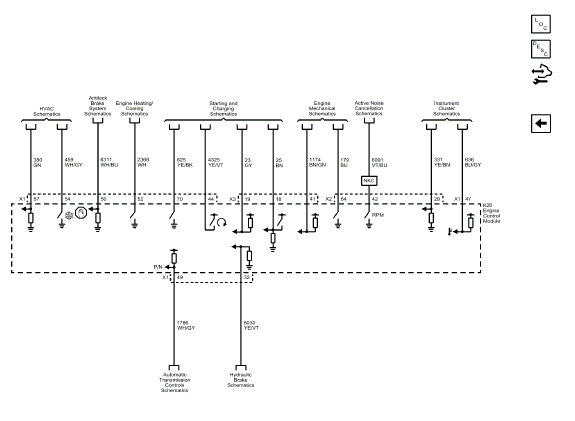

Controlled/Monitored Subsystem References
.png)
