Opel Insignia: Component Locator

DISASSEMBLED VIEWS

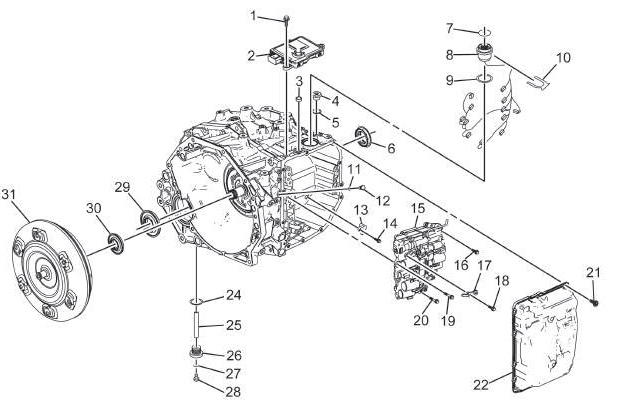

Case and Associated Parts (1 of 2)

Automatic Transmission

  1. Transmission Control Module Bolt [3x]
  2. Transmission Control Module
  3. Manual Shift Shaft Seal
  4. Transmission Fluid Filler Tube Plug
  5. Transmission Fluid Filler Tube Shipping Plug Seal
  6. Front Wheel Drive Shaft Oil Seal- Right Side
  7. Automatic Transmission Wiring Connector Seal
  8. Wiring Harness Wire
  9. Automatic Transmission Wiring Connector Seal
  10. Automatic Transmission Wiring Harness Retainer
  11. Automatic Transmission Case Seal
  12. Torque Converter and Differential Housing Hole Plug
  13. Automatic Transmission Input Speed Sensor
  14. Automatic Transmission Input Speed Sensor Bolt
  15. Control Valve Body - Model Dependent
  16. Valve Body Bolt[2x] M6 x 31
  17. Automatic Transmission Fluid Temperature Sensor Clip
  18. Automatic Transmission Fluid Temperature Sensor Bolt
  19. Valve Body Bolt[1x] M6 x 51
  20. Valve Body Bolt[5x] M6 x 21
  21. Valve Body Cover Bolt
  22. Control Valve Body Cover
  1. Transmission Oil Level Check Plug Seal
  2. Transmission Fluid Filler Upper Tube
  3. Automatic Transmission Fluid Level Hole Plug Seal
  4. Transmission Oil Drain Plug Seal
  5. Transmission Oil Drain Plug
  6. Front Wheel Drive Shaft Oil Seal- Left Side
  7. Torque Converter Fluid Seal
  8. Torque Converter

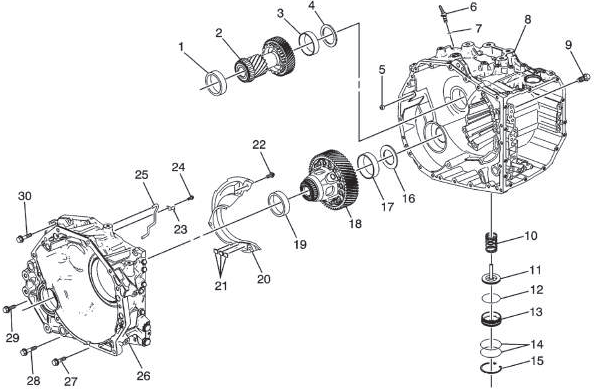

Case and Associated Parts (2 of 2)

Automatic Transmission

  1. Differential Drive Pinion Gear Outer Bearing Race
  2. Final Drive Pinion and Ring Gear
  3. Counter Gear Thrust Bearing Race
  4. Counter Gear Bearing Shim
  5. Automatic Transmission Case Fluid Passage Seal
  6. Automatic Transmission Vent Pipe
  7. Automatic Transmission Vent Seal - O-Ring
  8. Automatic Transmission Case
  9. Automatic Transmission Case Bolt
  10. 2nd Clutch Accumulator Piston Spring
  11. Forward Band Servo Piston
  12. Forward Clutch Accumulator Piston Fluid Seal Ring
  13. Forward Band Servo Cover
  14. 2-4 Band Servo Cover Seal - O-Ring[2x]
  15. 2-4 Band Servo Cover Retaining Ring
  16. Differential Bearing Shim
  17. Differential Bearing Race
  18. Differential
  19. Differential Carrier Bearing Race
  20. Automatic Transmission Fluid Baffle
  21. Automatic Transmission Fluid Pan Magnet
  22. Fluid Passage Cover Bolt [2x]
  23. Lubricant Fluid Pipe Retainer
  24. Automatic Transmission Fluid Baffle Bolt
  25. Front Differential Transfer Drive Gear Fluid Passage Tube
  26. Torque Converter and Differential Housing
  27. Torque Converter Housing Bolt[6x] M8 x 30
  28. Torque Converter Housing Bolt [2x] M8 x 39
  29. Torque Converter Housing Bolt[13x] M8 x 35
  30. Torque Converter Housing Bolt[2x] M10 x 40

Internal Components

Automatic Transmission

  1. Automatic Transmission Fluid Pump Bolt [2x]
  2. Automatic Transmission Fluid Pump Seal
  3. Automatic Transmission Fluid Pump Bolt [5x]
  4. Automatic Transmission Fluid Pump Seal[3x]
  5. Automatic Transmission Fluid Pump
  6. Automatic Transmission Fluid Filter
  7. Automatic Transmission Fluid Filter Bolt
  8. Automatic Transmission Fluid Pump Ring[4x]
  9. Automatic Transmission Fluid Pump Shaft Thrust Washer
  10. 3rd Clutch
  11. Front Sun Gear
  12. Front Sun Gear Thrust Bearing Race
  13. Sun Gear Thrust Bearing
  14. Sun Gear Rear Thrust Bearing Race
  15. Input Shaft Fluid Seal Ring [4x]
  16. Front Carrier
  17. Input Shaft Fluid Seal Ring [2x]
  18. Front Carrier Thrust Bearing Race
  19. Front Carrier Thrust Bearing
  20. Front Internal Gear
  21. Input Carrier Flange
  22. Forward Clutch Backing Plate Retaining Ring
  23. Input Clutch Housing Thrust Bearing
  24. Forward Clutch Housing Thrust Bearing Race
  25. Forward Clutch
  26. Input Sun Gear Thrust Bearing
  27. Sun Gear Front Thrust Bearing Race
  28. Input Drum
  29. Counter Drive Gear
  30. Center Support Bolt
  31. Vehicle Speed Sensor Spacer
  32. Vehicle Speed Sensor
  33. Automatic Transmission Intermediate Speed Sensor Bolt
  34. Sun Gear
  35. Overrun Clutch Retaining Ring
  36. Overrun Clutch
  37. Rear Carrier Thrust Washer
  38. Rear Carrier
  39. Rear Carrier Thrust Washer
  40. Rear Sun Gear Thrust Bearing
  41. Sun Gear Thrust Bearing Front Race
  42. Rear Sun Gear
  43. Sun Gear Rear Thrust Bearing Race
  44. 1-Reverse Clutch Backing Plate Retaining Ring
  45. Forward Clutch Backing Plate
  46. 1st and Reverse Clutch Plate - Friction Plate
  47. Forward Clutch Backing Plate
  48. 1st and Reverse Clutch Backing Plate
  49. Direct Clutch Bearing
  50. Direct Clutch Hub Thrust Bearing
  51. Direct Clutch
  52. Overrun Clutch Retaining Ring
  53. 1st and Reverse Clutch Spring
  54. Low and Reverse Clutch Piston
  55. Low and Reverse Clutch Application Ring
  56. Low and Reverse Clutch Application Ring
  57. 2nd Clutch Housing Rear Bearing
  58. Direct Clutch Hub Thrust Bearing Race

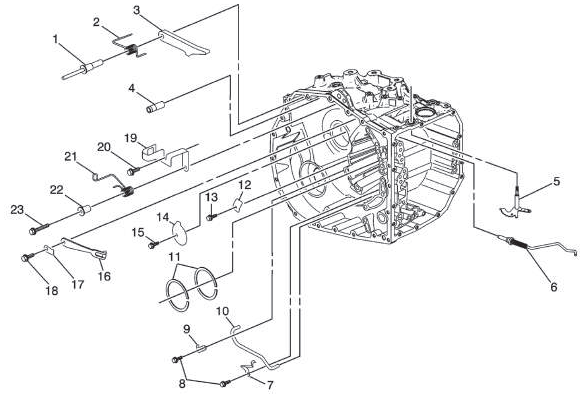

Park System Components

Automatic Transmission

  1. Park Pawl Shaft
  2. Park Pawl Spring
  3. Park Pawl
  4. Park Pawl Spring Pin
  5. Manual Shift Shaft Lever
  6. Park Pawl Actuator Rod
  7. Automatic Transmission Control Wiring Harness Clamp
  8. Front Differential Transfer Drive Gear Fluid Passage Tube Bolt [2x]
  9. Lubricant Fluid Pipe Retainer
  10. Lubricant Fluid Pipe
  11. Direct Clutch Housing Fluid Seal Ring
  12. Automatic Transmission Vent Baffle Cover
  13. Torque Converter and Differential Housing Bolt
  14. Automatic Transmission Vent Baffle Cover
  15. Torque Converter and Differential Housing Bolt
  16. Manual Shift Detent Lever Spring
  17. Automatic Transmission Control Lever Detent Spring
  18. Manual Shift Detent Bolt
  19. Park Pawl Bracket
  20. Park Pawl Actuator Bracket Bolt
  21. Park Pawl Actuator Lever Spring
  22. Park Pawl Pin Spring Guide Sleeve
  23. Park Pawl Actuator Bracket Bolt
