Opel Insignia: HVAC - Automatic
Opel Insignia B 2018-2025 Service Manual / HVAC & Restraints / HVAC - Automatic
SPECIFICATIONS
FASTENER TIGHTENING TORQUE SPECIFICATIONS

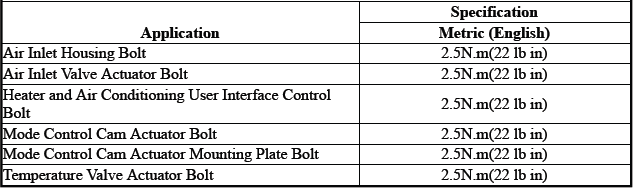

Reusable Threaded Fastener Tightening Specifications
NOTE: All fasteners listed in this table can be reused after removal.
.png)
SCHEMATIC WIRING DIAGRAMS
HVAC WIRING SCHEMATICS

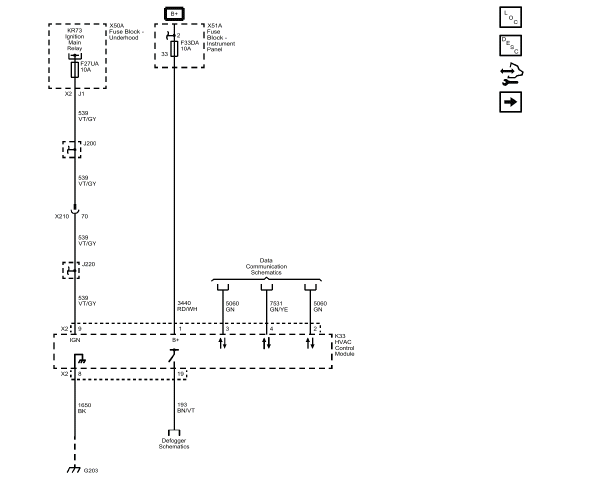

HVAC Module Power, Ground, Serial Data, and Subsystem References
.png)

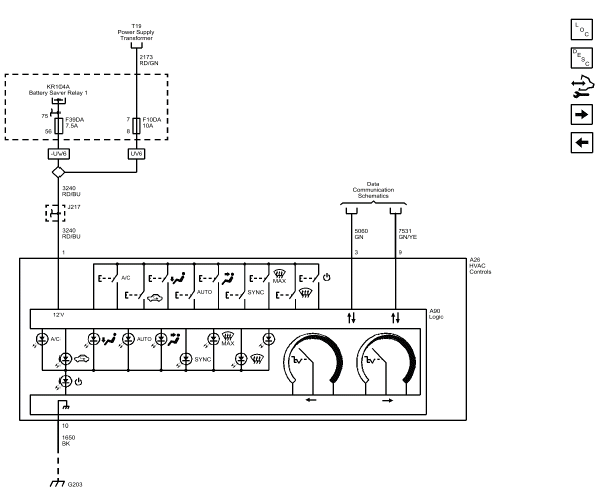

HVAC Controls
.png)
A/C Compressor Controls
.png)

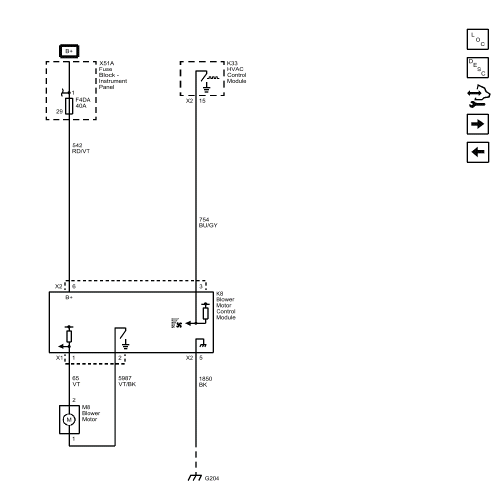

Blower Motor
.png)

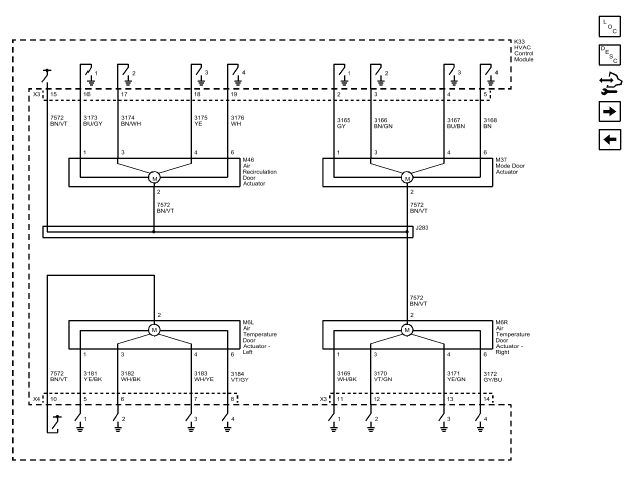

Mode and Temperature Door Actuators
.png)
Temperature Sensors
.png)

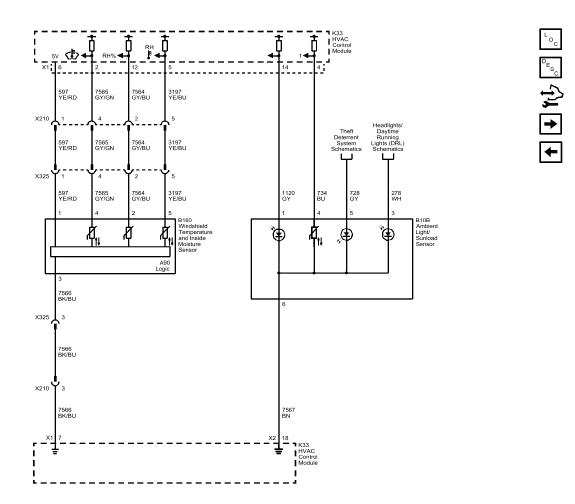

Windshield and Sunload Sensors
.png)

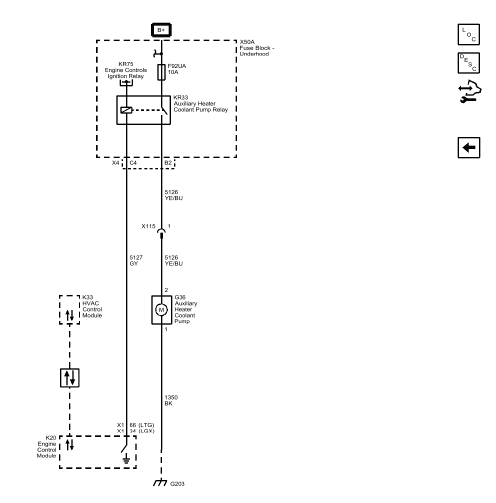

Heater Coolant Pump
.png)
