Opel Insignia: Mirrors

SPECIFICATIONS

FASTENER SPECIFICATIONS

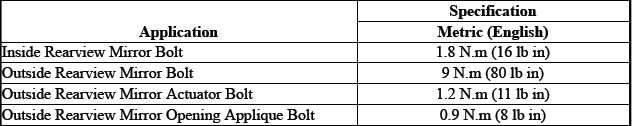

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Mirrors

SCHEMATIC WIRING DIAGRAMS

INSIDE REARVIEW MIRROR WIRING SCHEMATICS

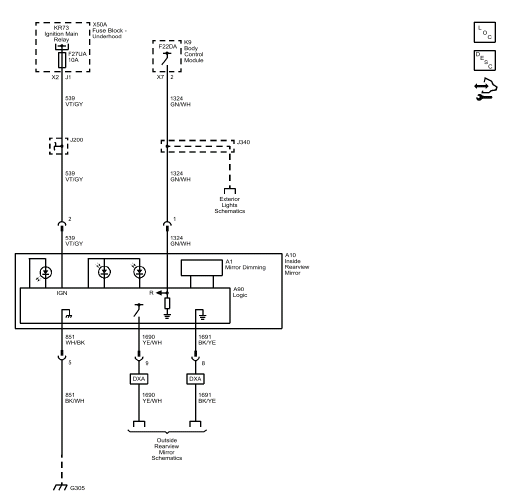

Auto-Dimming Mirror (DD8)

Mirrors

OUTSIDE REARVIEW MIRROR WIRING SCHEMATICS

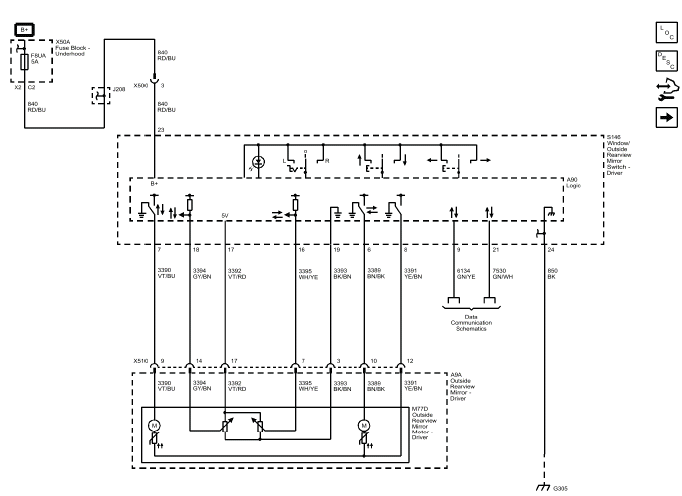

Driver Position and Folding (A45/A44)

Mirrors

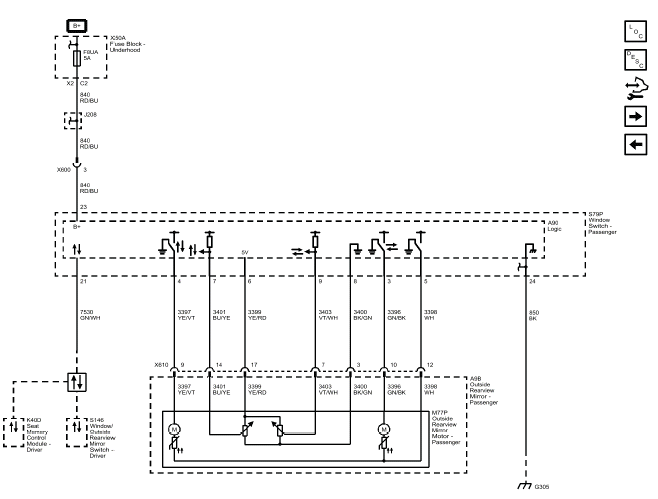

Passenger Position and Folding (A45/A44)

Mirrors

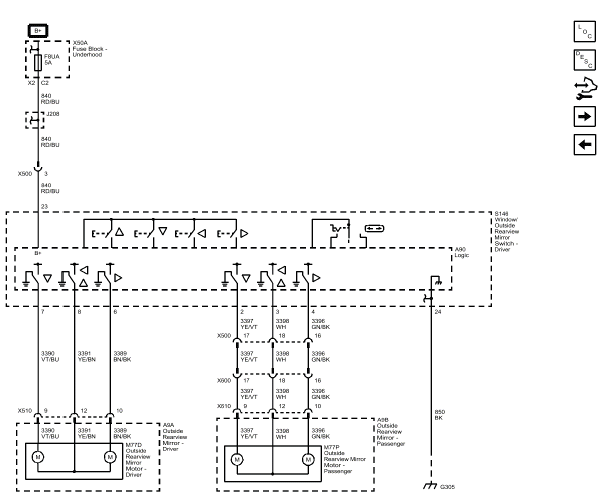

Driver and Passenger Position (-A45/A44)

Mirrors

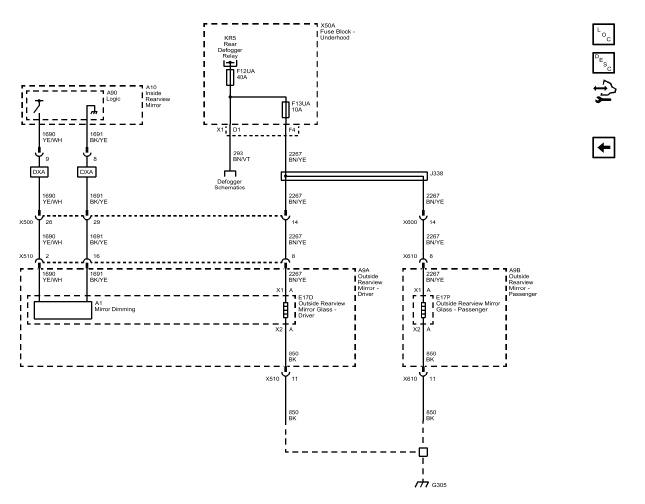

Dimming and Heating

Mirrors
