Opel Insignia: Special Tools and Equipment
SPECIAL TOOLS (DIAGNOSTIC TOOLS)
CH-34730-2C
J-34730-2C
Injector Test Lamp
.png)
CH-37287-1A
Fuel Pressure Gauge Adapter 3/8"
.png)
CH-38641-B
J-38641-B

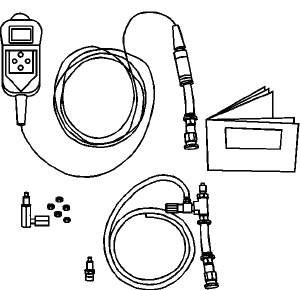

Diesel Fuel Quality Tester
.png)
CH-39021-301
J-39021-301
Fuel Injector Harness Adapter
.png)
CH-39021-460
J-39021-460
Fuel Injector Test Adapter
.png)
CH-41415-30
GE-41415-30
J-41415-30
Fuel Tank Cap Adapter
.png)
CH-41769
J-41769
Fuel Line Quick Disconnect Tool
.png)
CH-44284-2
J-44284-2
Fuel Flapper Door Holder
.png)
CH-42982
J-42982
Fuel Pressure Gauge Adapter
.png)
CH-44175-A
J-44175-A
Fuel Composition Tester
.png)
CH-45004
J-45004
Fuel Tank Drain Hose
.png)
CH-45722
J-45722

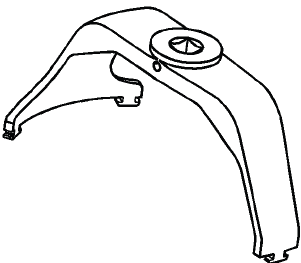

Fuel Sender Lock Ring Wrench
.png)
CH-45873
J-45873

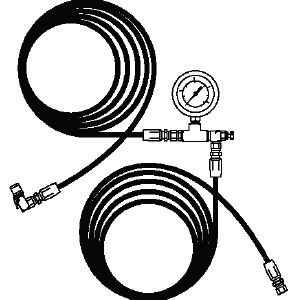

Fuel Return Volume Test Kit
.png)
CH-47717

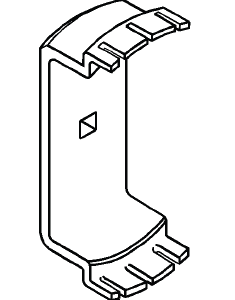

Lock Ring Wrench
.png)
CH-47976

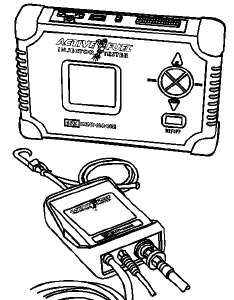

Active Fuel Injector Tester (AFIT)
.png)
CH-47976-75

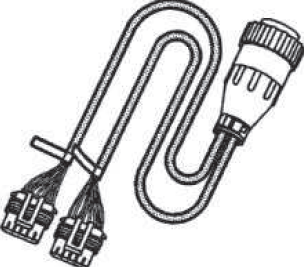

Fuel Injector Harness Adapter
.png)
CH-47976-500A
Active Fuel Injection Tester (AFIT) SIDI Adapter Kit
.png)
CH-47976-502A
AFIT SIDI E92 G2A Adapter Cable
.png)
CH-47976-503

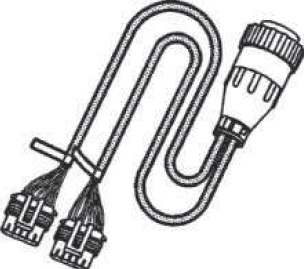

AFIT SIDI E80 G3 Adapter Cable
.png)
CH-47976-504
E92/E39A G2B
Start/Stop Adapter
.png)
CH-47976-509
AFIT SIDI E81 G4 Adapter Cable
.png)
CH-47976-511
AFIT SIDI E82 G5 Adapter Cable
.png)
CH-47976-512
E80 G3B Stop/Start Adapter
.png)
CH-47976-513
E92 G2C Stop/Start and SENT Adapter
.png)
CH-48027
Fuel Pressure Gauge
.png)
CH-48096
EVAP Service Access Port Tool
.png)
CH - 48482
Fuel Sender Lock Ring Wrench
.png)
CH-50375
Diesel Injector Return Line Pressure Adapter
.png)
CH-50377-A
Injector Return Line Cap
.png)
CH-50378
Injector Return Leakage Test Adapter
.png)
CH-50933
Gauge Assembly, Liquid Propane Gas (LPG)
.png)
EL-26792
J-26792
HEI Spark Tester
.png)
EL-34730-405
J-34730-405
Injector Test Lamp
.png)
EL-36169-HD
Heavy Duty Fused Jumper
.png)
EL-38522-A
J-38522-A
Variable Signal Generator
.png)
EL-39021
J-39021

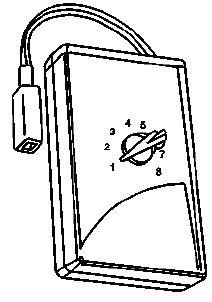

Fuel Injector Coil Balance Tester
.png)
EL-39021-460
J-39021-460
Fuel Injector Test Adapter
.png)
EL-43244
J-43244
Relay Puller Pliers
.png)
EL-44603
J-44603
Injector Test Lamp
.png)
EN-34730-91
J-34730-91
KM-J-34730-91
Pressure Tester
.png)
EN-36012-A
J-36012-A
Ignition System Diagnosis Harness
.png)
EN-37287
J-37287
Fuel Line Shut-off Adapters
.png)
EN-37287 - FF
Fuel Line Shut-off Adapters
.png)
EN-39021-210
J-39021-210
Injector Tester Adapter Box
.png)
EN-41413-311
J-41413-311

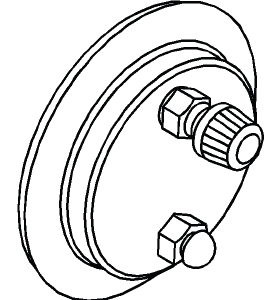

EVAP Plug
.png)
EN-41413-VLV
J-41413-VLV
EVAP Service Port Vent Fitting
.png)
EN-44602
J-44602
Injector Test Adapter
.png)
EN-45873-30
J-45873-30

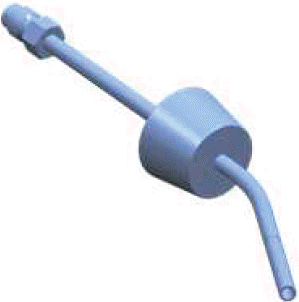

Injector Flow Test Adapter
.png)
EN-46091
J-46091
Charge Air Cooler Tester
.png)
EN-46091-5
J-46091-5
Charge Air Cooler Tester Adapter
.png)
EN-46091-10A
Diesel Engine Pressure Test Adapter
.png)
EN-46091-15
J-46091-15
Engine Pressure Test Adapter
.png)
EN-46091-15A
J-46091-15A
Diesel Engine Pressure Test Adapter
.png)
EN-46999
Displacement On Demand Tester
.png)
EN-46999 - 15
Active Fuel Management Tester Harness - V6
.png)
EN-46999 - 20
Active Fuel Management Tester Harness - Small Block V8
.png)
EN-47603
Compression Gauge Adapter
.png)
EN-47656 - NA Pressure Test Plugs
.png)
GE-23738-A
J-23738-A

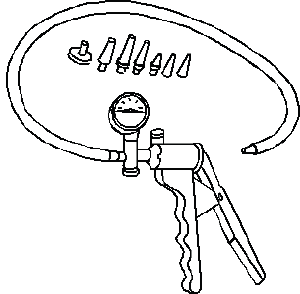

Vacuum Pump
.png)
GE-41413-300
EN-41413-300
J-41413-300

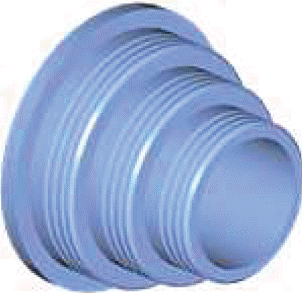

EVAP Cap and Plug Kit
.png)
GE-41413-A
EN-41413-A
J-41413-A

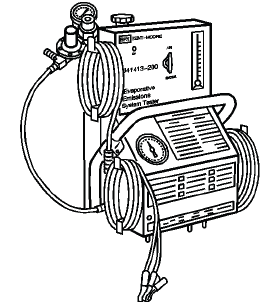

Evaporative Emissions System Tester (EEST)
.png)
GE-41413-SPT
J-41413-SPT
High Intensity White Light
.png)
GE-41415-50
J-41415-50
Fuel Tank Cap Adapter
.png)
GE-41415-60

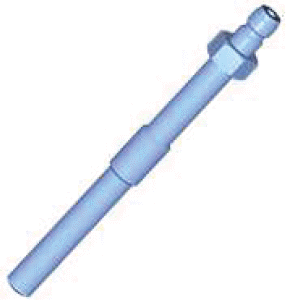

Engine Induction System Leak Test Adapter/Capless Fuel Fill Adapter
.png)
J-25070

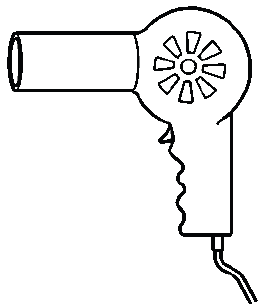

Heat Gun 260 - 399ºC (500 - 750ºF)
.png)
J-34730-375
Injector Test Lamp
.png)
J-44581
Fuel Line Disconnect Tool
.png)
J-28428 - E
J 42220
CH 42220
Universal 12-Volt Leak Detection Lamp
.png)
J-45878
Combustible Gas Detector
.png)
SPECIAL TOOLS (MECHANICAL TOOLS)
CH-41769
J-41769
Fuel Line Quick Disconnect Tool
.png)
CH-44581
Fuel Line Disconnect Tool
.png)
CH-45004
J-45004
Fuel Tank Drain Hose South America - Use Local Equivalent
.png)
CH-45722
Fuel Sender Lock Ring Wrench
.png)
CH-48482
Fuel Sender Lock Ring Wrench
.png)
EN-34730-91
Pressure Tester
.png)
EN-50790
Fuel Pump Installation Alignment Gauge
.png)
EN-50791
Fuel Injector Nozzle Installer
.png)
EN-6197
EN-46577
KM-6197
CH-39194-C
Oxygen Sensor Remover/Installer
.png)
GE- 41413-200
Evaporative Pressure and Pressure Purge Station
.png)
CH-37287 - 1A
Fuel Pressure Gauge Adapter
.png)
