Opel Insignia: Supplemental Inflatable Restraints

Opel Insignia B 2018-2025 Service Manual / HVAC & Restraints / Supplemental Inflatable Restraints

SPECIFICATIONS

FASTENER SPECIFICATIONS

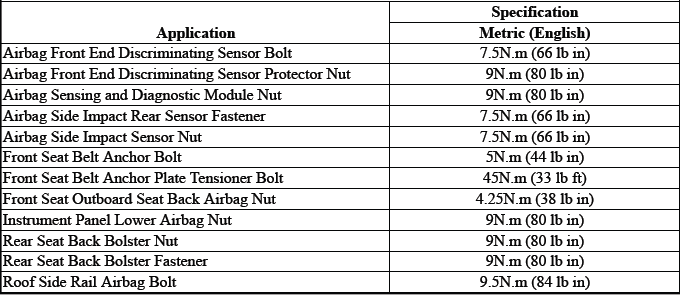

Reusable Threaded Fastener Tightening Specifications

NOTE: All fasteners listed in this table can be reused after removal.

Supplemental Inflatable Restraints

SCHEMATIC WIRING DIAGRAMS

SIR WIRING SCHEMATICS

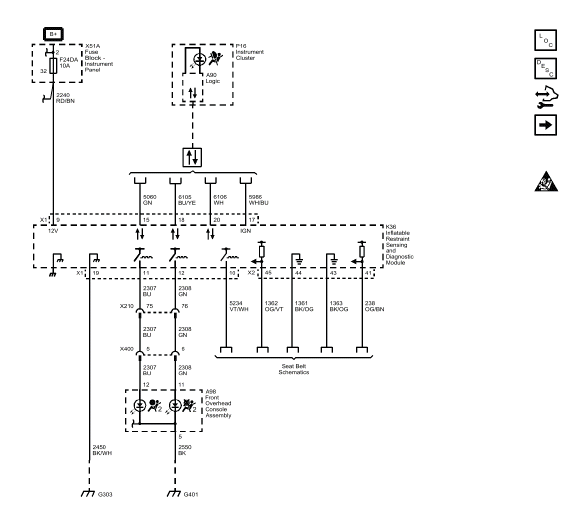

Power, Ground, Serial Data, and Indicator

Supplemental Inflatable Restraints

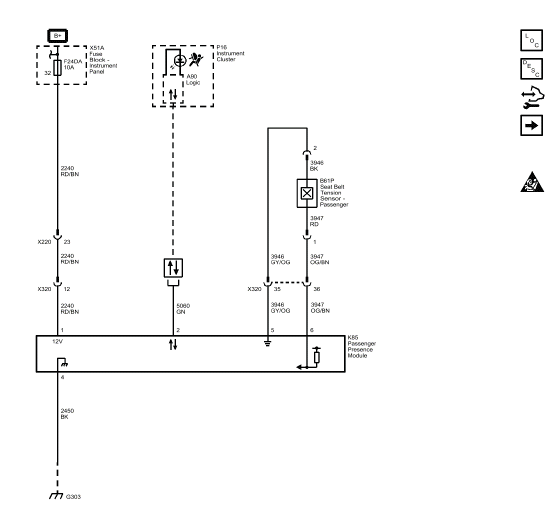

Passenger Presence System

Supplemental Inflatable Restraints

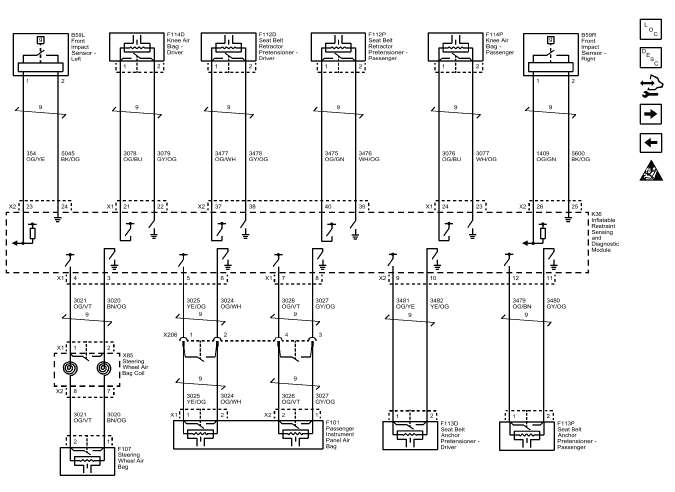

Frontal Impact Sensing and Deployment

Supplemental Inflatable Restraints

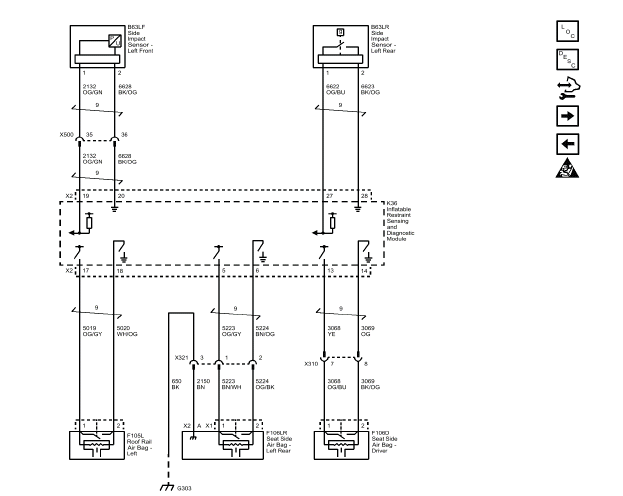

Left Side Impact Sensing and Deployment

Supplemental Inflatable Restraints

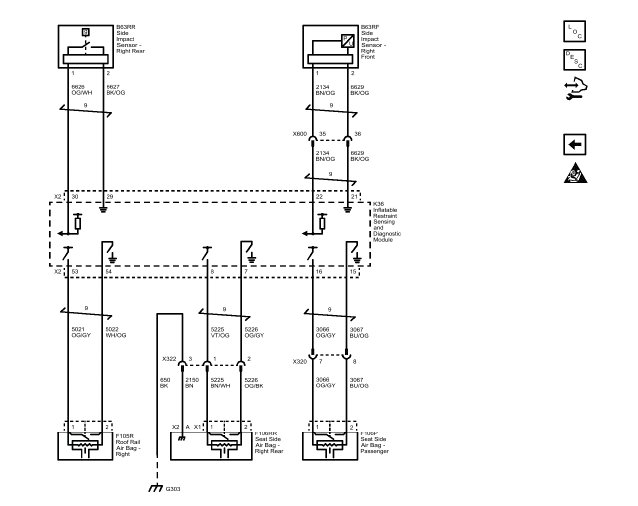

Right Side Impact Sensing and Deployment

Supplemental Inflatable Restraints
